Gherkin

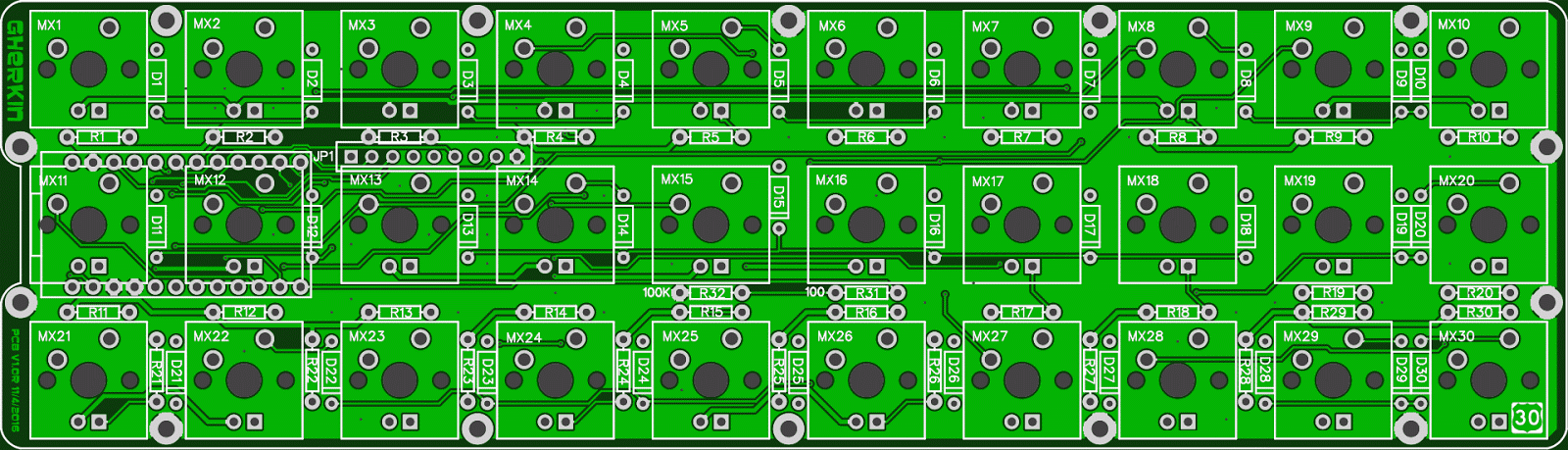

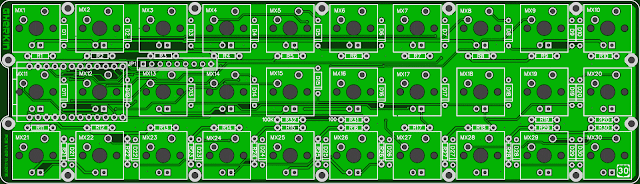

30 key keyboard

• Efficient 5x6 matrix
• TMK firmware
• PWM backlight
• Pro Micro controller
• Unused pins broken out to header
• How to order PCBs
• Get PCB pricing from PCB Shopper

• Assembly notes

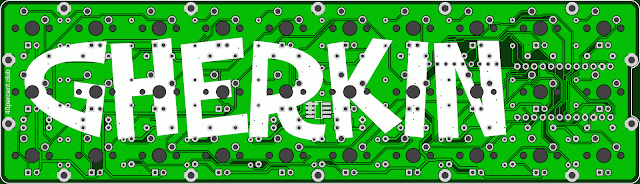

• With PCB top and bottom plates
• Low effort method of creating firmware
• PB Gherkin with 4 way switch mounting

My smallest keyboard with MX switches. The entire bottom row are dual function tap/hold keys.

There is a missing trace. From VCC on the Pro Micro to the first pin (square pin) on JP1.

Gateron milky white housings dyed green with RIT Emerald Green dye. They are very dark.
You can see the brown jumper wire to fix the missing trace.

M2 spacers and screws holding the two PCB's together.

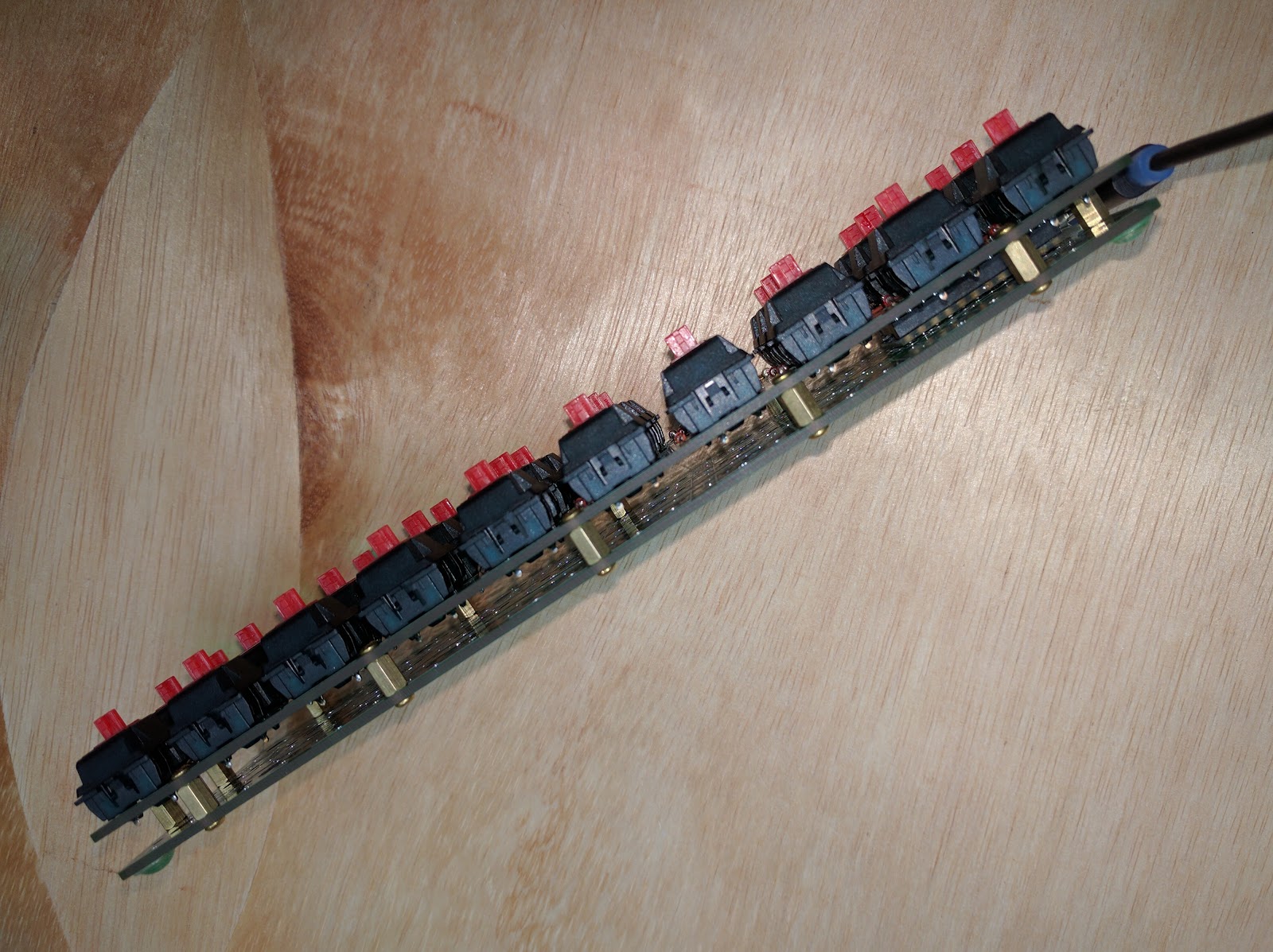

6mm spacers. Would like to get it thinner, but would require integrating the controller into the PCB.
